FV-2000 controller

Category：

This component receives sensor signals, processes them, and outputs them to the actuator. It is the user interface for operating and setting the correction system and is the control core of the correction system. For any demanding requirements in the field of web guiding systems, precise and reliable correction control can be provided through simple operation of the equipment control panel, aligning the edges of the web material. It also features advanced automatic setting functions that can automatically set the material edge requirements.

E-mail:

sales@wxkcon.com

Consult Now

Product Details

Control loop
Any automated control is based on a simple control loop. Even complex tasks can be broken down and simplified into these control loops.
+ The starting point is the current position of the material surface.
+ The electric eye detects the actual position of the material edge. Depending on the task and material conditions, infrared electric eyes, ultrasonic electric eyes, or line scan electric eyes can be used. + The controller compares the actual value of the material edge position with the set value and sends a corresponding correction signal to the actuator.
+ The actuator corrects the running of the material surface. Depending on the application and the material, the actuator may be a frame-type correction, a rotary pusher, a turning frame, or a linear actuator of a winder.

Technical parameters

Input power supply	DC 24V
Input current	<15A
Output voltage	PWM-24V
Output current	Maximum 10A
Control method	Closed-loop
Sensor signal input	2-channel analog 0-5V
Operating environment	0°C-40°C (humidity below 80%RH)
Installation method	Embedded

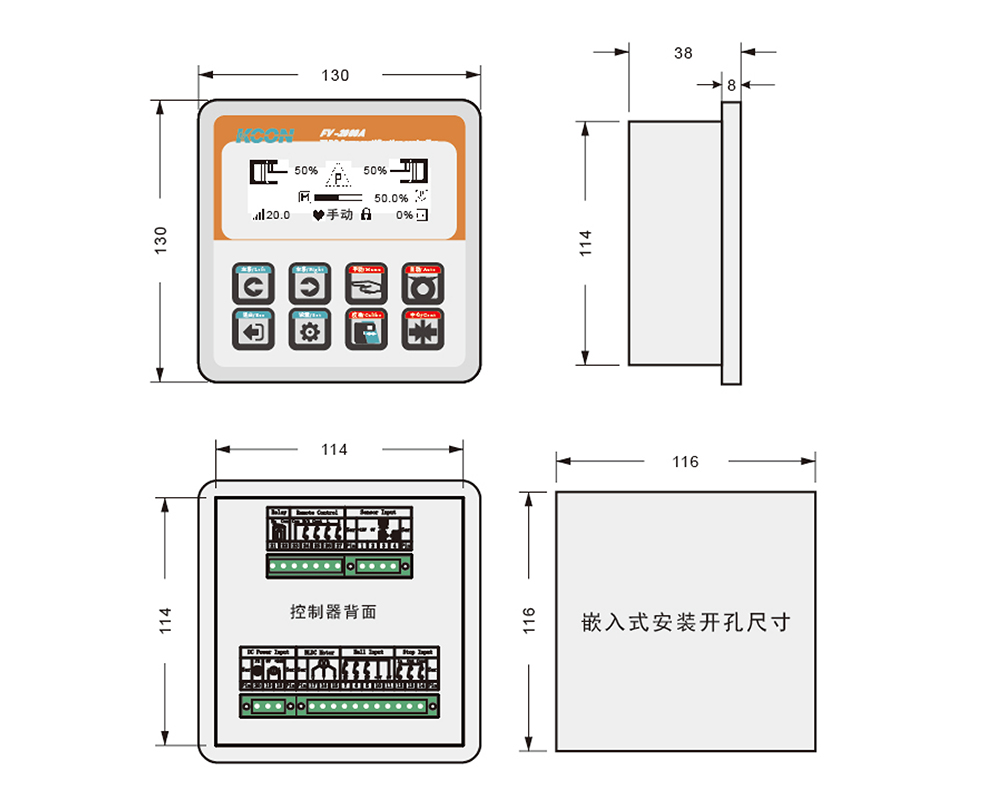

Dimensions	Length 130mm x Width 130mm x Depth 64mm
Weight	0.7kg
