Web Guide Roller Frame

KCON Brochure（Web Guide System）.pdf

PGL-F framework correction

PGL-F framework correction

The PGL-F series is a zero pivot process correction. When the material feeding path deviates, the rotating bracket moves around a virtual pivot to adjust the material to the set position.

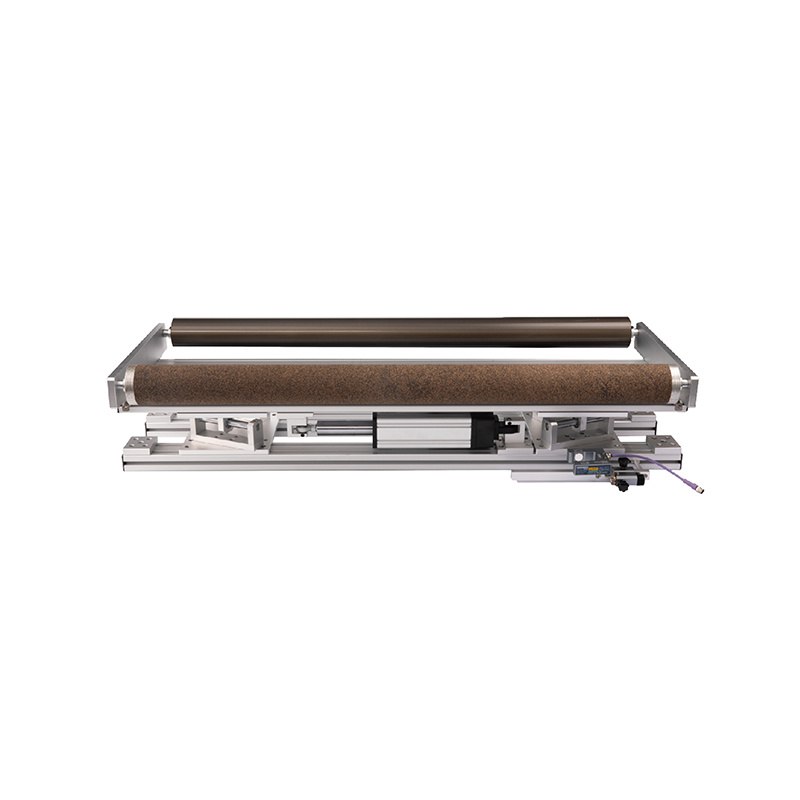

DW-1200 frame correction

DW-1200 frame correction

Customizable framework,suitable for your needs in different application environments for Keke

PGK-600-AT frame correction

PGK-600-AT frame correction

Integrated frame design, small size, flexible installation, and multiple applications available.  Pneumatic paper feeding table and sensor fine-tuning bracket can be flexibly matched to meet various customer requirements.

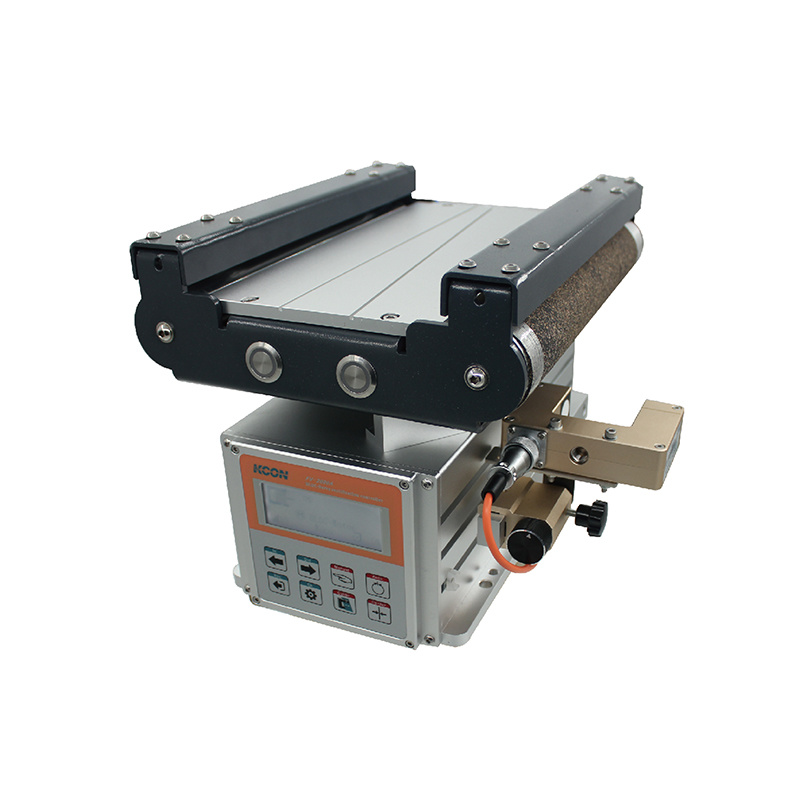

PGK-400C frame correction

PGK-400C frame correction

Integrated frame design, small size, flexible installation, and multiple applications available.  Pneumatic paper feeding table and sensor fine-tuning bracket can be flexibly matched to meet various customer requirements.

PGL-S350 framework correction

PGL-S350 framework correction

In the framework based correction system PGL-S,the material undergoes four 90°turns. A swinging adjustable frame with two steering rollers forms the basis of the above steering process. The virtual position of the rotation point of the adjust- ment framework is within the dry feed plane. Only after rotating around this center point can the material be laterally corrected. The prerequisite is that there is always sufficient tension to ensure the transmission of force between the mate-rial and the adjusting roller.

PGL-S350 framework correction

PGL-S350 framework correction

Our aim is to enable all users to obtain maximum economic benefits from our professional consulting services and excellent technical support.
