Web Guide Sensor

KCON Brochure（Web Guide System）.pdf

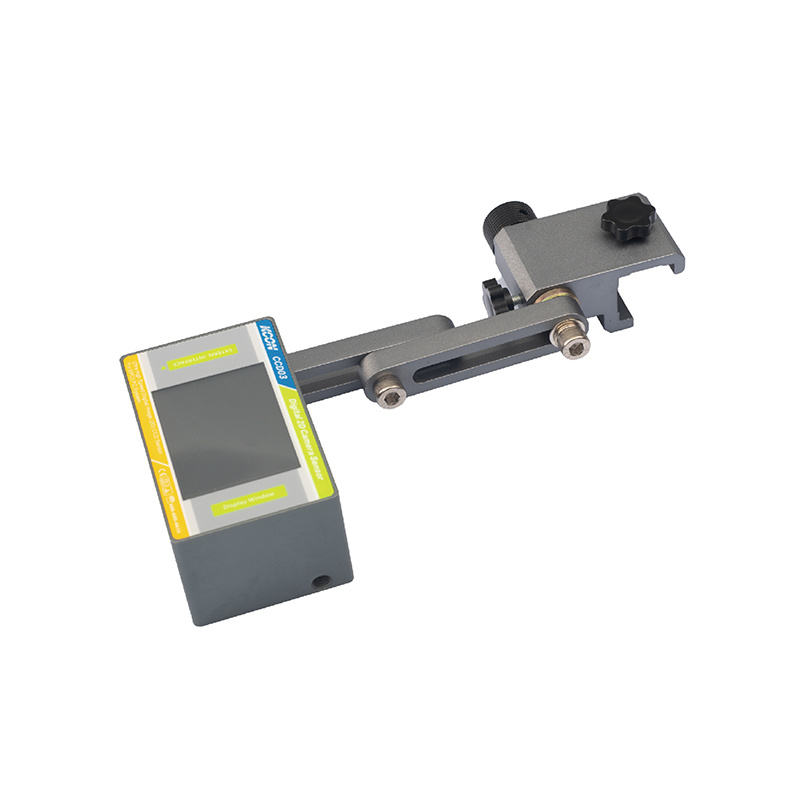

CCD03 sensor

CCD03 sensor

The CCD03 sensor captures real images without blurring, with higher recogni-tion and more sensitive response speed. In terms of configuration, it is equipped with a 10 megapixel lens and a capture frequency of 120 frames per second. The standard accuracy can reach 0.02 millimeters, and the detection range is wide, up to 25mm. No need to move the sensor due to changes in material width. Multiple algorithms are integrated: transparent film,laser film, non-woven fabric, and dashed line tracking. Easy to operate, completed in two steps,eliminating the tedious operation of ordinary CCD.

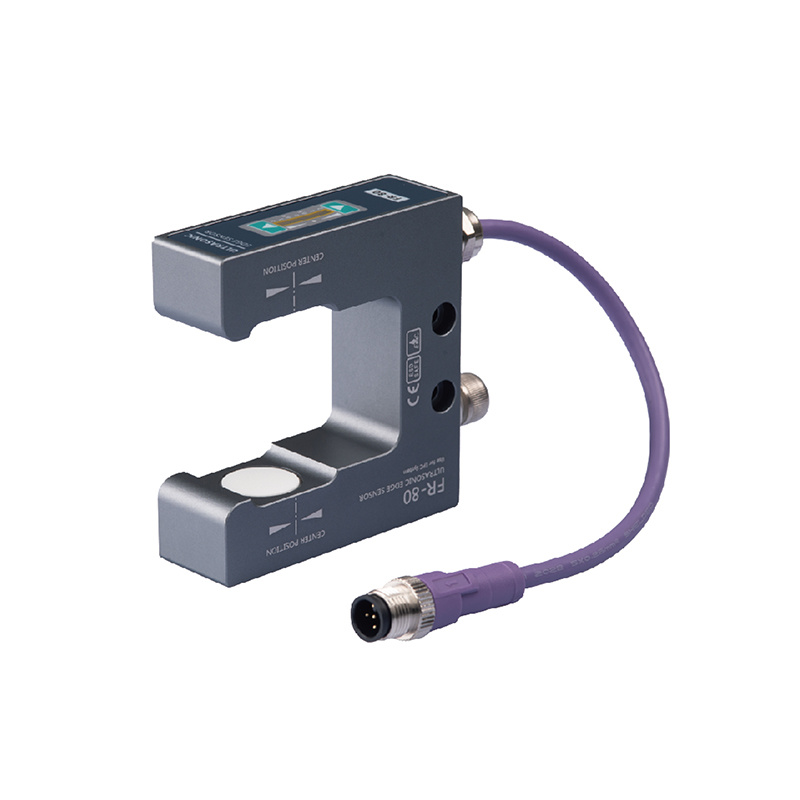

FR-80 sensor

FR-80 sensor

The ultrasonic transducer of the ultrasonic sensor oscillates at 220KHz and outputs up to 1KHz. Between the ultrasonic transmitter and receiver, the receiver receives the part of the ultrasonic wave that is not blocked by the material. Airflow and temperature changes can be compensated for, so the accuracy can reach 0.01mm. It can test the edge position of non-sound-transmitting materials and is not affected by paper ash-like pollution.

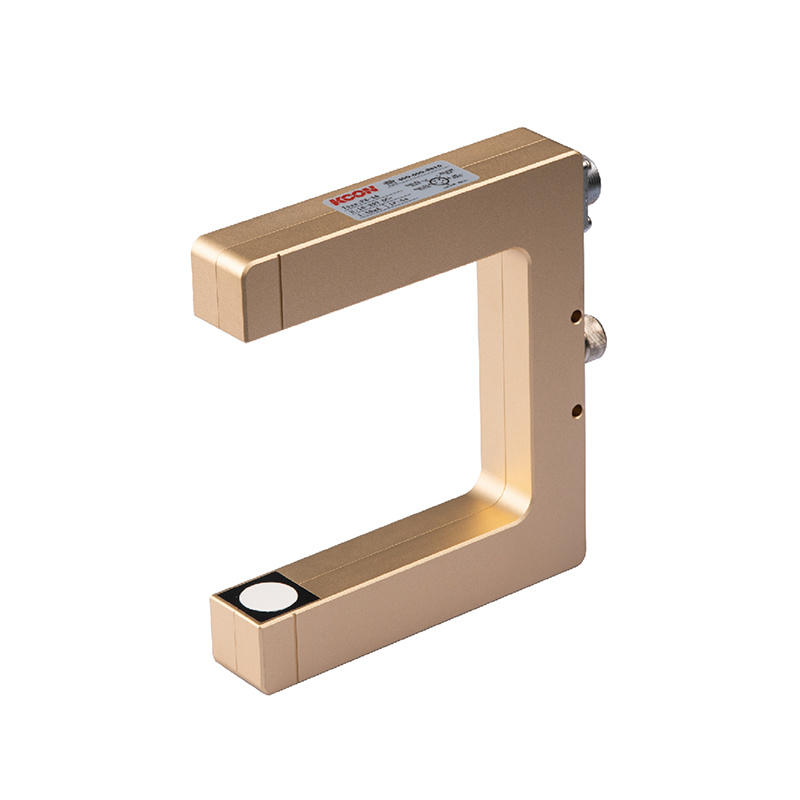

FR-100 sensor

FR-100 sensor

The ultrasonic transducer of the ultrasonic electric eye emits ultrasonic waves at a frequency of 220KHz with an output of up to 1KHz. Between the ultrasonic emitter and the receiver, the receiver receives the part of the ultrasonic wave that is not blocked by the material. Airflow and temperature changes can be compensated for, so the accuracy can reach 0.01mm. It can test the edge position of non-sound-transmitting materials and is not affected by paper ash-like pollution.

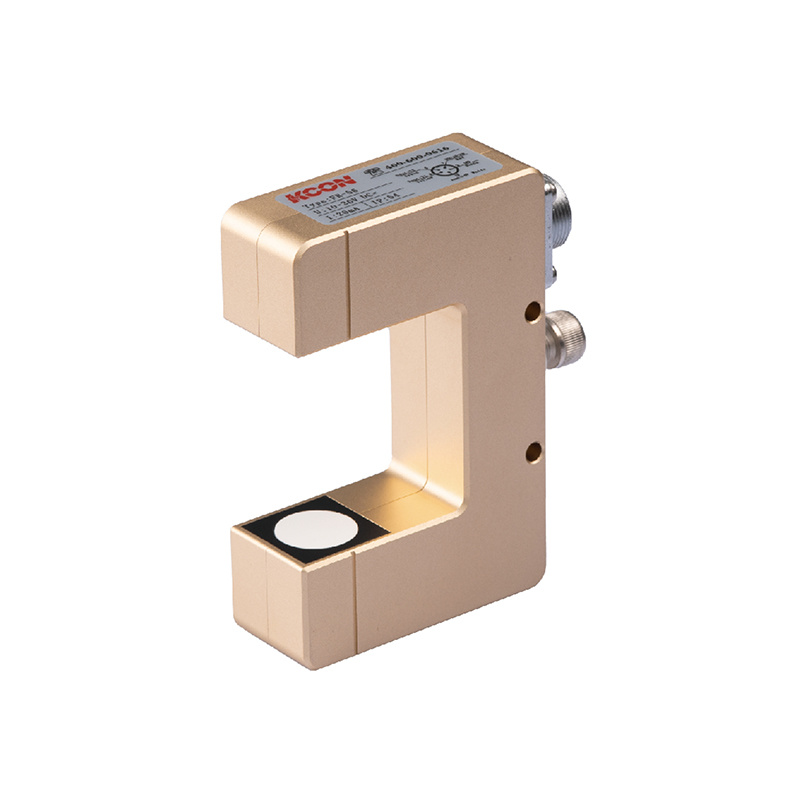

FR-56 sensor

FR-56 sensor

The ultrasonic transducer of the ultrasonic sensor oscillates at 220KHz and outputs up to 1KHz. Between the ultrasonic transmitter and receiver, the receiver receives the part of the ultrasonic wave that is not blocked by the material. Airflow and temperature changes can be compensated for, so the accuracy can reach 0.01mm. It can test the edge position of non-sound-transmitting materials and is not affected by paper ash-like pollution.

JK-3 sensor

JK-3 sensor

The JK-3 infrared edge detection sensor belongs to the high-precision transmission detection method, and the emitting part uses an imported infrared emitting tube to emit a modulated frequency light source (not affected by natural light interference) The receiving part adopts imported composite silicon photovoltaic cells, which detect the edge of the material and convert the detected position signal into corresponding analog voltage and dual TTL level output The sensor is  equipped with temperature compensation and overcur- rent/overvoltage protection circuits inside.

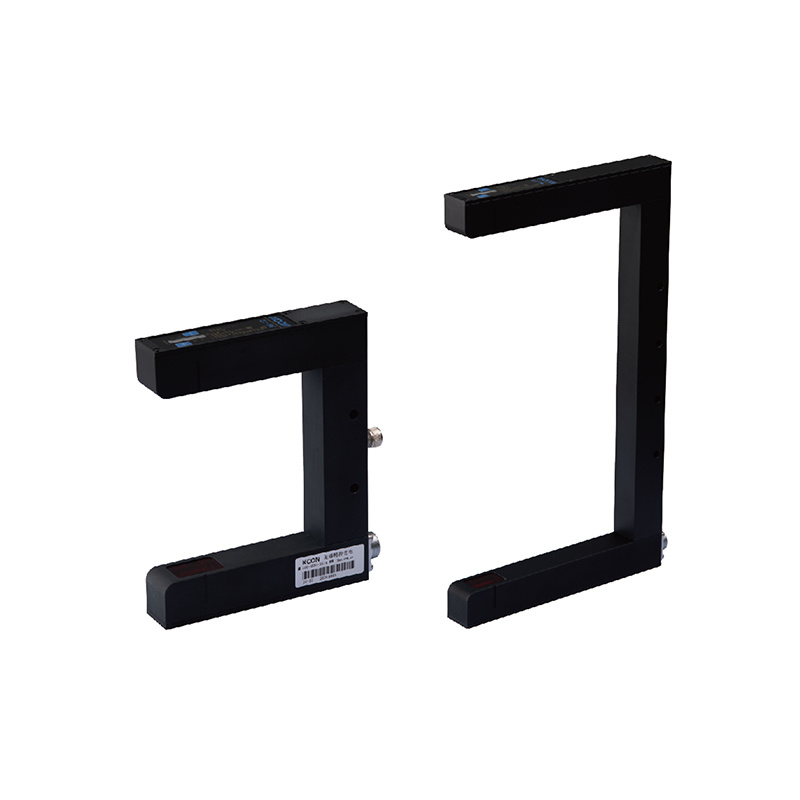

JK-12/JK-30 sensors

JK-12/JK-30 sensors

The JK-12 infrared edge detection sensor belongs to the high-pre- cision transmission detection method, and the emitting part uses an imported infrared emitting tube to emit a modulated frequency light source (not affected by natural light interference) The receiv- ing part adopts imported composite silicon photovoltaic cells,which detect the edge of the material and convert the detected position signal into corresponding analog voltage and dual TTL level output The sensor is equipped with temperature compensa- tion and overcurrent/overvoltage protection circuits inside.

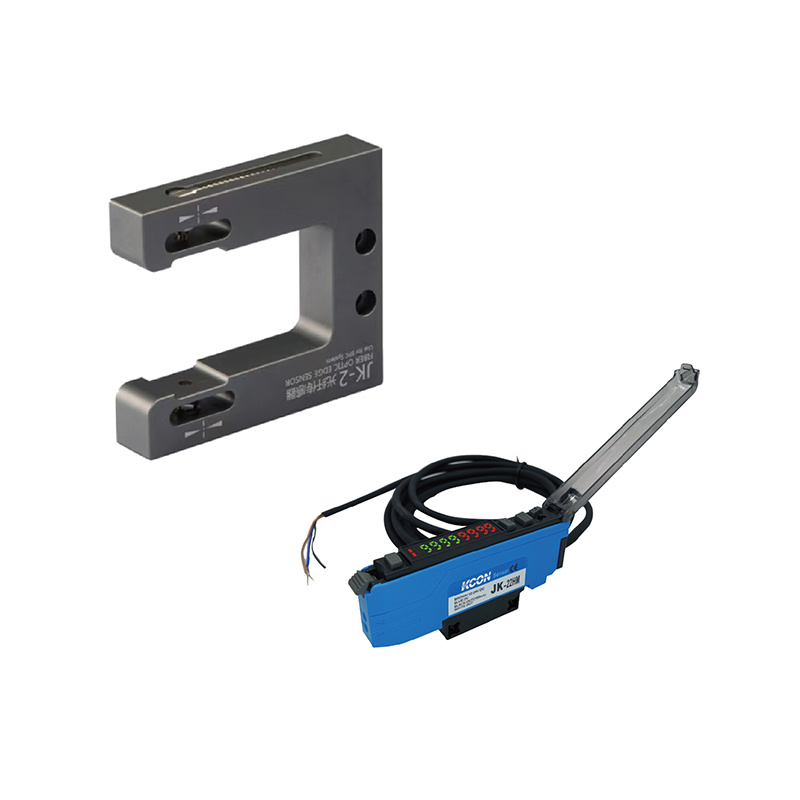

JK-2 sensor

JK-2 sensor

+ Good stability + Fast response + Anti-interference

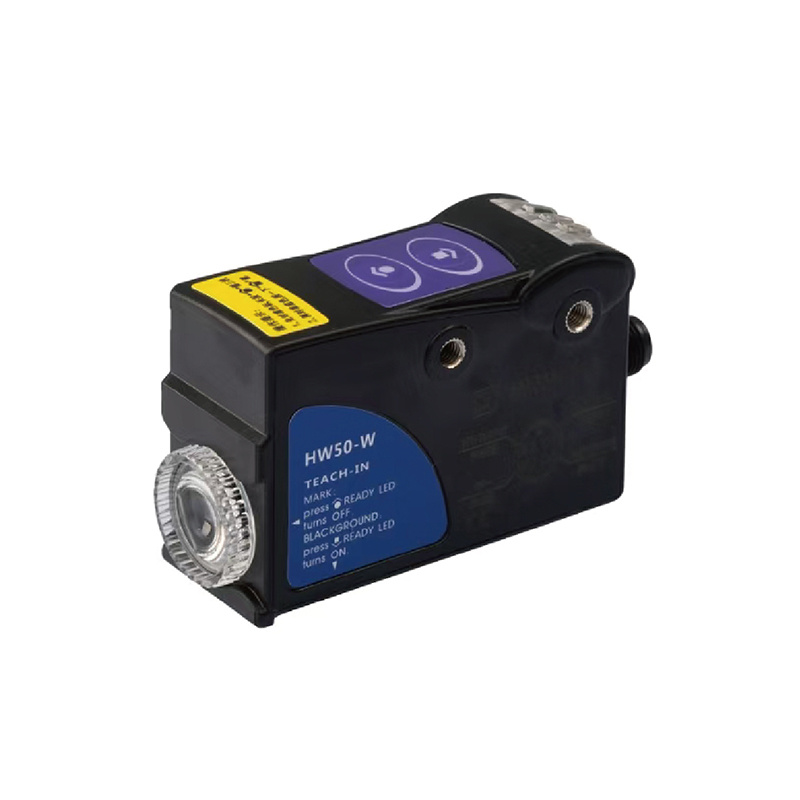

HW-50 sensor

HW-50 sensor

The HW50 color code sensor provides a reasonable solution for customers who require high-performance detection and hope to reduce costs. The color code sensor of this model adopts an efficient optical lens, automatically selects red, green, and blue LED light sources, and has high resolution. Can detect colors that are similar to the background, gray levels with low contrast, and different objects or surfaces.

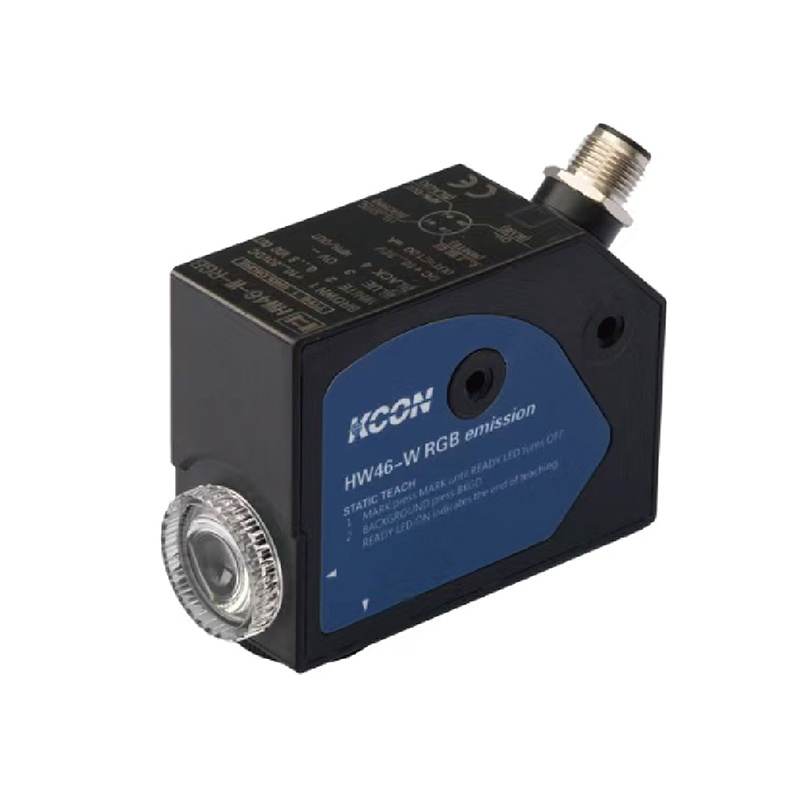

HW-46 sensor

HW-46 sensor

The HW46 color sensor series products have excellent performance in terms of resolution due to their use of RGB LE light sources, fast response time, and high switching frequency. The carefully designed sensor is encapsulated in a sturdy metal casing using standard installation methods; Three different product types are available. The HW46-W basic model only has one setting button and two LED indicator lights;
