FV-5000A controller

Category：

This component receives sensor signals, processes them, and outputs them to the actuator. It is the user interface for operating and setting the correction system and is the control core of the correction system. For any demanding requirements in the field of web guiding systems, precise and reliable correction control can be provided through simple operation of the equipment control panel, aligning the edges of the web material. It also features advanced automatic setting functions that can automatically set the material edge requirements.

E-mail:

sales@wxkcon.com

Consult Now

Product Details

Full Touch Controller
+4.3-inch large screen full-color display, pure touch operation.
+User-friendly operation interface, simple and user-friendly operation. With parameter classification setting wizard, digitalization is clear at a glance.
+Small size, beautiful appearance, reliable quality.
+Supports connection to CCD03 vision sensor.
+Flexible installation: embedded installation, fixed installation, integrated installation.

Technical Parameters

Operating Voltage	DC24V
Operating Current	<10A
Screen Size	4.3 inch
Signal Input	Analog 0-5V
Operating Environment	OC-40C (humidity below 80%RH)
Installation Method	Embedded
Housing Material	Aluminum Magnesium Alloy

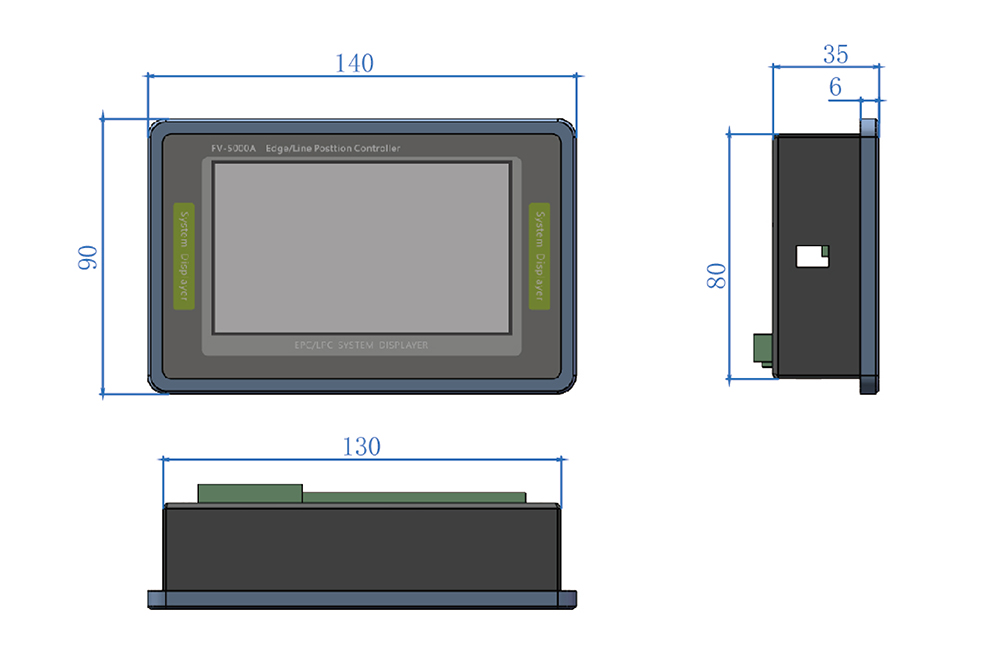

Dimensions	Length 140mm x Width 90mm x Height 35mm
Protection Level	IP54
Weight	0.5KG
