FV-360 controller

Category：

This component receives sensor signals, processes them, and outputs them to the actuator. It is the user interface for operating and setting the correction system and is the control core of the correction system. For any demanding requirements in the field of web guiding systems, precise and reliable correction control can be provided through simple operation of the equipment control panel, aligning the edges of the web material. It also features advanced automatic setting functions that can automatically set the material edge requirements.

E-mail:

sales@wxkcon.com

Consult Now

Product Details

Product Features

+ Beautiful and compact appearance, high level of craftsmanship, strong anti-interference ability, strong corrosion resistance, simple and convenient installation.
+The new operating interface does not have operation knobs and uses touch sensitive buttons for simple and intuitive operation, which can prevent misoperation.
+High system integration, automatic saving of set parameters, three loop fuzzy PID control, high control accuracy.
+ Remote manual/automatic mode control, limit alarm relay output, automatic protection against driving current overload.
+ Modular design, high stability, no vulnerable components, energy-saving and environmen-tally friendly, no maintenance required.

Technical Parameters

lnput Power Supply	AC220±5%
Input Current	≥2A
Output Voltage	AC220V
Output Current	Maximum 2A
Control Method	Closed-loop
Sensor Signal Input	Up to 2 TTL level (NPN) channels
Operating Environment	0°C-40°C (humidity below 80%RH)
Installation Method	Embedded

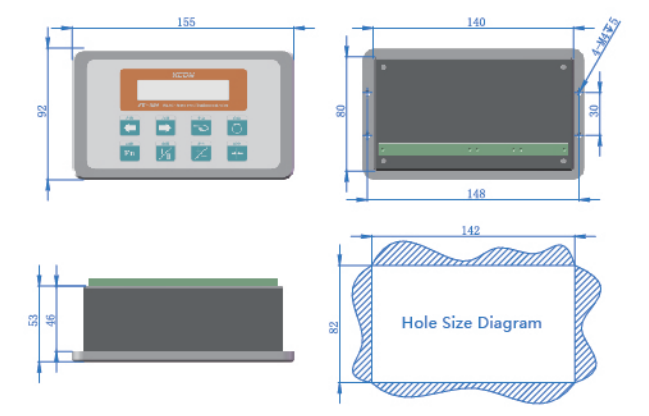

External Dimensions	Length 155mm x Width 92mm x Depth 51mm
Weight	0.4kg
