PC type magnetic powder clutch with base
Category：
Consult Now
Product Details
| Model |
PC-0.6 |
PC-12 |
PC-25 |
PC-5 |
PC-10 |
PC-20 |
PC-40 |
|
| Rated Torque kgfm(N-m) |
0.6(6) |
1.2(12) |
2.5(25) |
5(50) |
10(100) |
20(200) |
40(400) |
|
| Capacity DC24(75℃) |
Current(A) |
0.81 |
0.94 |
1.24 |
2.15 |
2.4 |
2.7 |
3.5 |
| Power(W) |
19.4 |
22.5 |
30 |
51.5 |
57.6 |
64.8 |
84 |
|
| Time Constant(S) |
0.08 |
0.1 |
0.12 |
0.13 |
0.25 |
0.37 |
0.4 |
|
| Moment of Inertia |
Input Side |
7.30x10-4 |
1.34x10-³ |
3.8x10-3 |
9.5x10-3 |
3.5x10-2 |
9.15x10-2 |
2.4x10-1 |
| Output Side |
2.40x10- |
4.90x10- |
1.49x10-3 |
4.8x10- |
2.5x10-² |
6.89x10-2 |
2.2x10-1 |
|
| Permissible Sliding Power with Forced Air Cooling |
Air Pressure(Pa) |
3x10⁴ |
5x10 |
1x10% |
6x10 |
5x10 |
2x105 |
|
| Air Flow(Pa) |
0.2 |
0.4 |
0.6 |
1.1 |
1.6 |
2.0 |
||
| Power(W) |
250 |
380 |
700 |
1100 |
1900 |
2800 |
||
| Weight(kg) |
3.6 |
5.2 |
9 |
14.5 |
37 |
53 |
100 |
|
| Maximum Speed(r/min) |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
|
| Magnetic Powder Weight(g) |
10 |
20 |
33 |
60 |
140 |
225 |
370 |
|

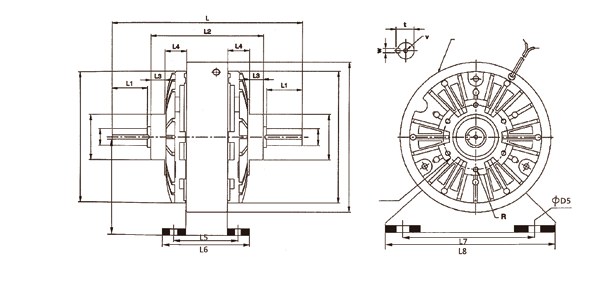

| Dimensions |
D1 |
134 |
152 |
182 |
219 |
290 |
325 |
395 |
| D2 |
80 |
126 |
159.5 |
195 |
256 |
301 |
360 |
|
| D3(g7) |
42 |
42 |
55 |
74 |
100 |
110 |
130 |
|
| D4 |
64 |
64 |
78 |
100 |
140 |
150 |
200 |
|
| L |
164 |
191.7 |
230 |
293.9 |
360 |
4072 |
500.4 |
|
| L1 |
26 |
29.5 |
43 |
55 |
65 |
69 |
92 |
|
| L2 |
100 |
124 |
136 |
172 |
216 |
250 |
291 |
|
| L3 |
14 |
15 |
17 |
30 |
28 |
30 |
35 |
|
| L4 |
16 |
25.5 |
26 |
28 |
45.5 |
56 |
66.5 |
|
| d(h7) |
12 |
15 |
20 |
25 |
30 |
35 |
45 |
|
| t(-0 /-0.2) |
13.5 |
17 |
22 |
28 |
33 |
38.5 |
48.5 |
|
| W(p7) |
4 |
5 |
5 |
7 |
7 |
10 |
12 |
|
| V |
M4x8 |
M4x8 |
M5x10 |
M6x12 |
M10x20 |
M10x20 |
M10x20 |
|
| R |
6-M6x10 |
6-M6x10 |
6-M6x10 |
6-M6x10 |
6-M10x15 |
6-M10x15 |
8-M10x15 |
|
| S |
1/8 |
1/8 |
1/44 |
3/8 |
3/8 |
3/8 |
||
| L5 |
50 |
60 |
60 |
80 |
100 |
120 |
130 |
|
| L6 |
68 |
85 |
90 |
105 |
160 |
165 |
180 |
|
| L7 |
120 |
120 |
165 |
180 |
250 |
280 |
300 |
|
| L8 |
140 |
150 |
195 |
220 |
300 |
330 |
360 |
|
| H1 |
75 |
90 |
120 |
130 |
160 |
185 |
230 |
|
| D5 |
7 |
10 |
12 |
12 |
12 |
15 |
17 |
|
The company reserves the right to change or discontinue product specifications and dimensions.
