PC type magnetic powder clutch

Category：

Specializing in the research, development, production, and sales of tension controllers, web guiding controllers, tension detectors, magnetic powder brakes, magnetic powder clutches, and other industrial automation products. Expert in industrial motion control and web control.

E-mail:

sales@wxkcon.com

Consult Now

Product Details

Model		PC-0.6	PC-1.2	PC-2.5	PC-5	PC-10	PC-20	PC-40
Rated Torque kg#m(N-m)		0.6(6)	1.2(12)	2.5(25)	5(50)	10(100)	20(200)	40(400)
Capacity DC24(75℃)	Current(A)	0.81	0.94	1.24	2.15	2.4	2.7	3.5
	Power(W)	19.4	22.5	30	51.5	57.6	64.8	84
	Time Constant(S)	0.08	0.1	0.12	0.13	0.25	0.37	0.4
Moment of Inertia		6x10-4	1.34x10-3	3.8x10-3	9.5x10-3	3.5x10-2	9.15x10-2	2.4x10-1
Permitted Sliding Power with Forced Air Cooling	Air Pressure(Pa)		3x104	5x104	1x10⁵	6x104	5x104	2x10⁵
	Air Flow(Pa)		0.2	0.4	0.6	1.1	1.6	2.0
	Power(W)		250	380	700	1100	1900	2800
Weight(kg)		4	5.2	9	14.5	34	53	100
Maximum Speed(r/min)		1800	1800	1800	1800	1800	1800	1800
Magnetic Powder Weight(g)		10	20	33	60	140	225	370

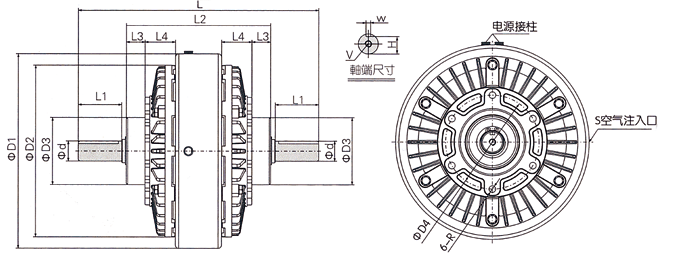

Dimensions	D1	134	152	182	219	290	325	395
	D2	116	126	160	198	256	295	365
	D3(g7)	42	42	55	74	100	110	130
	D4	64	64	78	100	140	150	200
	L	164	192	232	294	360	408	500
	L1	26	29	43	55	65	69	92
	L2	100	124	136	172	216	250	291
	L3	14	15	17	30	28	30	35
	L4	18	25.5	26	28	45.5	55	66.5
	d(h7)	12	15	20	25	30	35	45
	H	9.5	12.5	17.5	21	26	30.5	40.5
	W(p7)	4	5	5	7	7	10	12
	V	M4x0.7Px8L	M4x0.7Px8L	M5x0.7Px10L	M6x1Px12L	M10x1.5Px20L
	R	M5x0.7P	M6x1P			M10x1.5P
	S	1/8	1/8		1/4	3/8
