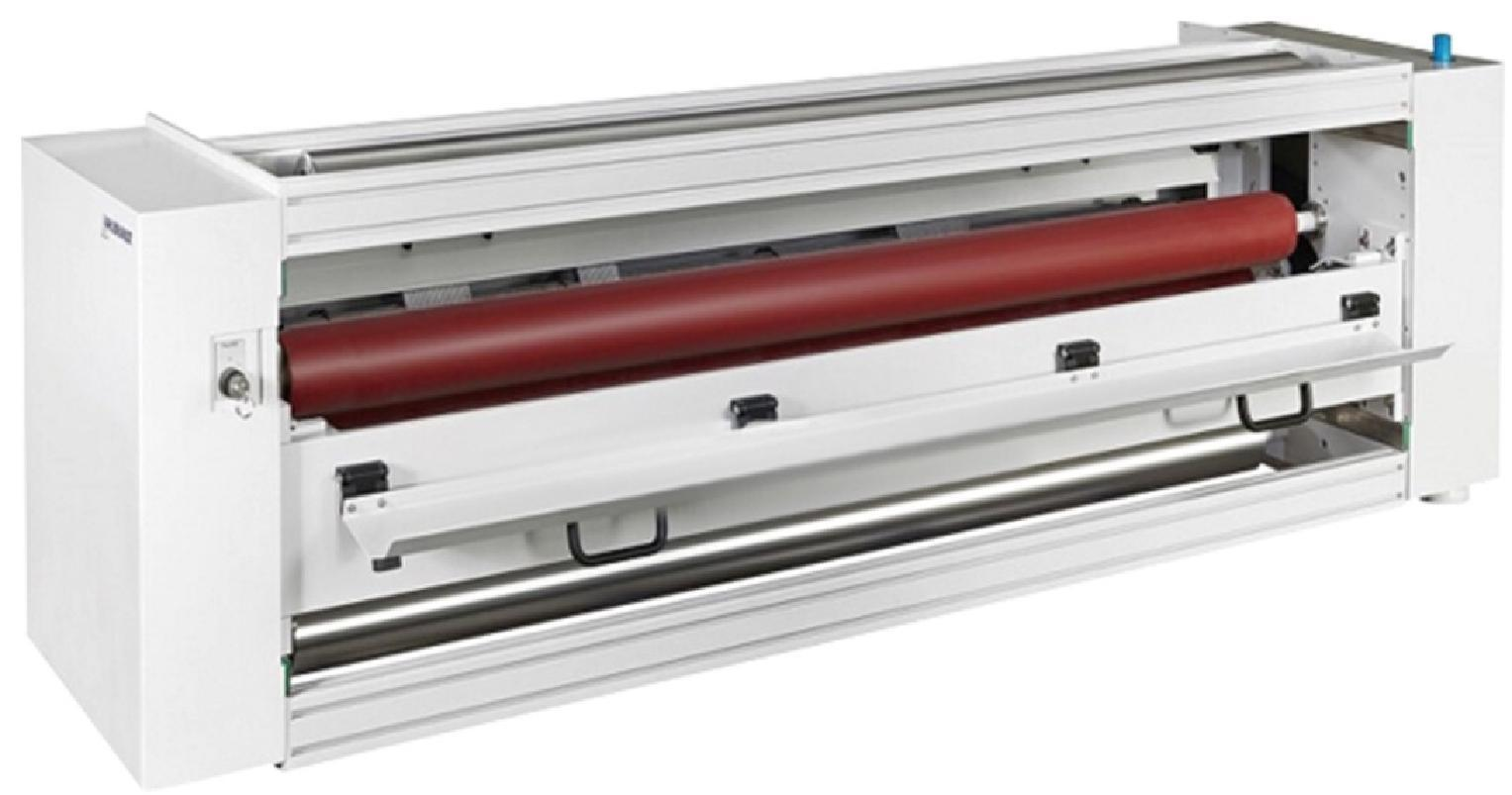

Corona discharge rack

Category：

The product adopts a split structure. The control system and the high-pressure oil tank are separated, so the high-pressure oil tank can be installed near the discharge rack, which can greatly shorten the transmission distance of the high-voltage lines and greatly avoid the impact of excessively long high-voltage lines on the safety of personnel and machines.

E-mail:

sales@wxkcon.com

Consult Now

Product Details

Corona Treater Features Summary

I. The product adopts a split structure. The control system and the high-voltage oil tank are separated, so the high-voltage oil tank can be installed near the discharge rack, which can greatly shorten the transmission distance of the high-voltage line and greatly avoid the impact of excessively long high-voltage lines on the safety of personnel and machines.
II. Integrated drive control design. It can be installed in the cabinet, which is more convenient and beautiful.
III. The human-machine interface provides digital tube display and touch screen display, which can be used alone or in combination.
IV. The bit control and registers of RS485 can be opened to customers, and customers can design their own host computers (touch screen or PLC) according to their needs, making it easier for customers to use.
V. Rich external ports provide convenient solutions for more functions.
1. For speed sensors, low-cost Hall sensors and high-precision encoder interfaces are available.
2. There are independent external start and emergency stop ports.
3. Small signal OC alarm output and relay alarm output.
4. With material shortage and blockage detection.
5. With automatic power adjustment. Automatically adjust the power output according to the material output speed, without manual adjustment.
6. High-power corona treater with ground current detection. Even if the corona treater works in a very humid environment, the corona treater can still work normally and adaptively, and will not damage the corona control system.
7. Sensitive high-voltage open circuit, short circuit, and overcurrent detection make the equipment run more safely.
8. Automatic adjustment of output power PID makes the output more stable and reduces the impact of power grid voltage fluctuations. Greatly improves product consistency
