Strain sensor
Category：
Consult Now
Product Details
Specifications
| Model Z |
C-50N |
ZC-150N |
ZC-300N |
ZC-500N |
ZC-1000N |
| Rated Load |
50N |
150N |
300N |
500N |
1000N |
| Working Principle |
Uses full-bridge strain gauge detection |
||||
| Operating Voltage |
5V |
||||
| Applicable Load Direction |
Compression and tension in two directions |
||||
| Installation |
Ground mounting, wall mounting, ceiling mounting |
||||
| Wiring Dimensions |
7mxO7 (Attachment) |
||||
| Conditions of Use |
-5~+40℃ Vibration 2m/s or less |
||||
| Bearing Housing Used |
204# |
||||
| Weight (approx.) |
1.8kg |
||||

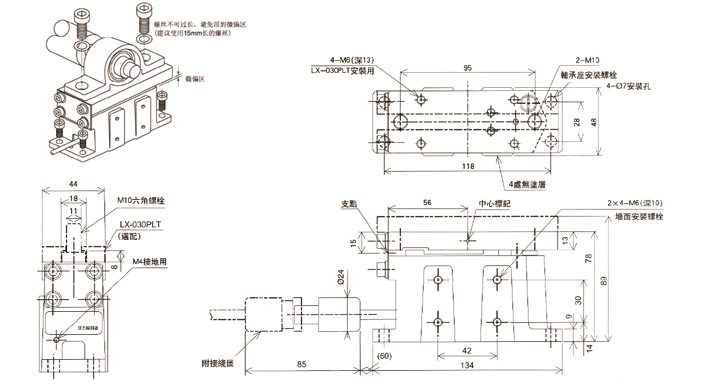

Dimensions

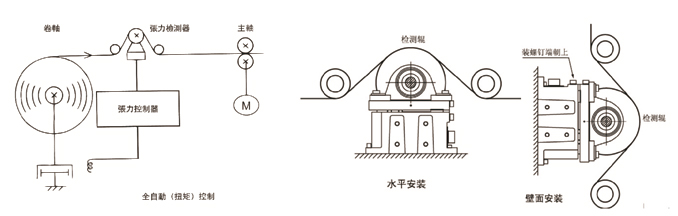

Tension Control Mechanism Example
