Inflatable shaft
Category：
Consult Now
Product Details

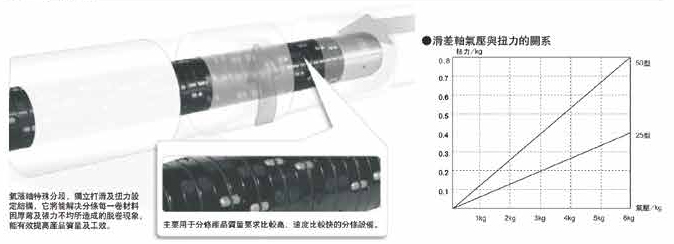

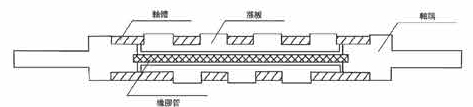

Basic Structure

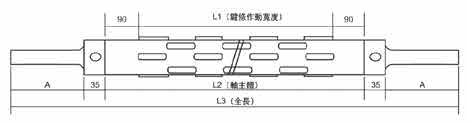

Basic Standard Style
| L2+70 Length |
2" |
3" |
6" |
| 600~1000mm |
8^12(kg) |
15^20(kg) |
Calculated Separately |
| 1000~1300mm |
12^14(kg) |
20^25(kg) |
|
| 1300~1600mm |
14^16(kg) |
25^30(kg) |
|
| 1600~2000mm |
16^20(kg) |
30^38(kg) |
| Diameter Before Inflation |
Diameter After Inflation |
Applicable Inner Diameter of Coil Tube |
|
| 1-inch Standard Type |
=φ25mm |
=φ28~φ32mm |
=φ26~φ30mm |
| 2-inch Standard Type |
=φ49mm |
=φ52~φ54mm |
=φ50.5~φ52mm |
| 3-inch Standard Type |
=φ74mm |
=φ79~φ81mm |
=φ75.5~φ78.5mm |
| 6-inch Standard Type |
=φ149mm |
=φ165~φ157mm |
=φ151~φ153mm |
Slip-type inflatable shaft
