Secure chuck
Category：
Consult Now
Product Details
Features
The safety chuck is designed for frequent connection and disconnection of the drive, providing a quick, reliable, simple, and safe coupling.
Precise machining accuracy ensures accurate positioning.
The reel support uses a special heat treatment process.

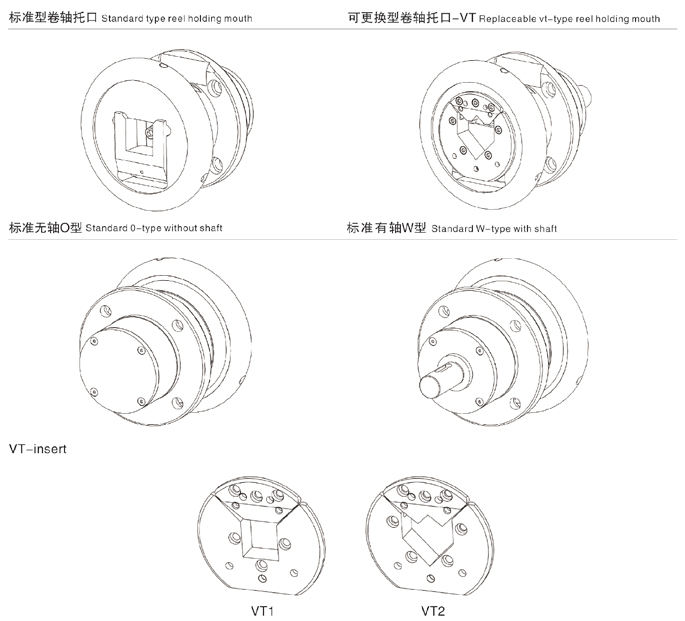

Replaceable VT-type reel supports are provided, significantly extending the service life.
Note: Special reel supports can be customized according to requirements.

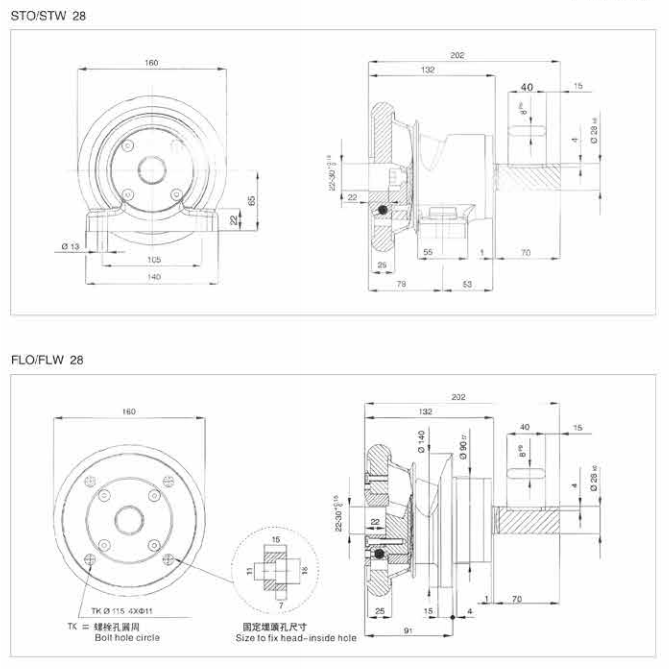

| Model |
STO/STW 28- |
FLO/FLW 28- |
| Maximum Beam Load |
800 |
800 |
| Maximum Torque |
18(180) |
18(180) |
| Permissible Dimensions of Reel Shaft End |
22-30 |
22-30 |
| Weight (approx.) |
18 |
18 |
Note: Shaft end dimensions can be customized within the permissible range according to requirements.
