PB-B3 hollow thin magnetic powder brake
Category：
Consult Now
Product Details
| Model |
006 |
015 |
025 |
050 |
100 |
|
| Rated Torque kgf/m(N-m) |
0.6 |
1.2 |
2.5 |
5 |
10 |
|
| Moment of Inertia kg㎡ |
9.0x10 -5 |
1.60x10 -5 |
2.8x10 -4 |
10.0x10 -4 |
3.80x10 -3 |
|
| Capacity(75℃) |
Current(A) |
0.4 |
0.5 |
1.1 |
1.35 |
1.31 |
| Power(W) |
9.6 |
12 |
26.4 |
32.4 |
31.4 |
|
| Time Constant(S) |
0.1 |
0.13 |
0.15 |
0.17 |
0.3 |
|
| Maximum Speed(r.p.m) |
600 |
600 |
600 |
600 |
600 |
|
| Keyway(b*t) |
6x22.8 |
8x28.3 |
8x28.3 |
8x33.3 |
10x38.3 |
|

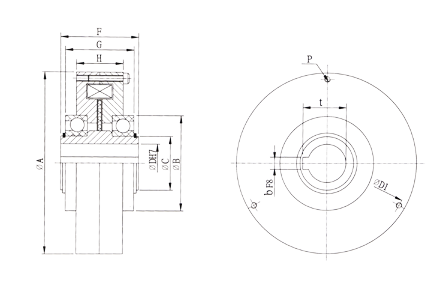

| Radial Direction |
A |
105 |
118 |
139 |
182 |
232 |
| B |
55 |
62 |
62 |
80 |
100 |
|
| C |
30 |
35 |
35 |
40 |
55 |
|
| D |
20 |
25 |
25 |
30 |
35 |
|
| D1 |
97 |
110 |
129 |
169 |
216 |
|
| P |
4-M4 |
3-M4 |
4-M5 |
4-M6 |
4-M8 |
|
| Axial Direction |
F |
49 |
52 |
60 |
72 |
94 |
| G |
43 |
44 |
52 |
63 |
82 |
|
| H |
30 |
30 |
42 |
47 |
62 |
|
| Magnetic Powder Weight(g) |
14 |
17 |
30 |
60 |
100 |
|
| Weight(kg) |
N/A |
2.24 |
4.4 |
8.4 |
17.6 |
|
The company reserves the right to change or discontinue product specifications and dimensions.
