PB type magnetic powder brake with base

Category：

Specializing in the research, development, production, and sales of tension controllers, web guiding controllers, tension detectors, magnetic powder brakes, magnetic powder clutches, and other industrial automation products. Expert in industrial motion control and web control.

E-mail:

sales@wxkcon.com

Consult Now

Product Details

Model		PB-0.6	PB-1.2	PB-2.5	PB-5	PB-10	PB-20	PB-40
Rated Torque kgf/m(N-m)		0.6(6)	1.2(12)	2.5(25)	5(50)	10(100)	20(200)	40(400)
Capacity DC24(75℃)	Current(A)	0.81	0.94	1.24	2.15	2.4	2.7	3.5
	Power(W)	19.4	22.5	30	51.5	57.6	64.8	84
	Time Constant(S)	0.08	0.1	0.12	0.13	0.25	0.37	0.4
Moment of Inertia		6x10^-4	1.34x10^-3	3.8x10-³	9.5x10^-3	3.5x10^-2	9.15x10^-2	2.4x10^-1
Permitted Sliding Power with Forced Air Cooling	Wind Pressure(Pa)		3x10⁴	5x104	1x105	6x104	5x104	2x105
	Air Flow(Pa)		0.2	0.4	0.6	1.1	1.6	2.0
	Power(W)		250	380	700	1100	1900	2800
Weight(kg)		3.7	5.2	9	14.5	37	53	100
Maximum Speed(r/min)		1800	1800	1800	1800	1800	1800	1800
Magnetic Powder Weight(g)		10	20	33	60	140	225	370

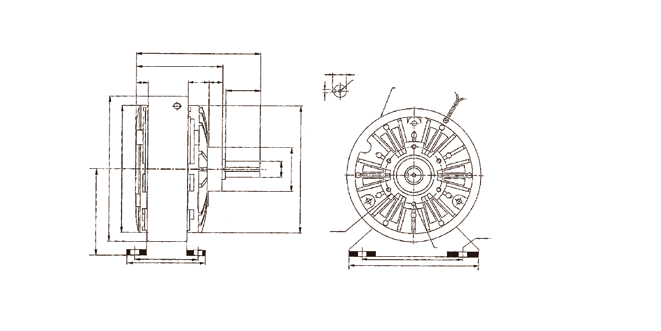

Dimensions	D1	134	152	182	219	290	325	395
	D2	80	126	160	196	256	301	365
	D3(g7)	42	42	55	74	100	110	130
	D4	64	64	78	100	140	150	200
	L	114	132	155	193	239	278	338
	L1	26	29	43	55	65	69	92
	L2	82	98	108	132	167	199	234
	L3	6	124	136	30	28	30	35
	L4	14	15	17	28	45.5	56	70
	L5	12	25.5	26	18	26.5	32	40
	d(h7)	12	14.5	20	25	30	35	45
	t(-82)	13.5	15	22	28	33	38.5	48.5
	W(p7)	4	17	5	7	7	10	12
	V	M4x8	M4x8	M5x10	M6x12	M6x12	M10x20	M10x20
	R	6-M6x10	6-M6x10	6-M6x10	6-M6x10	6-M6x10	6-M10x15	6-M10x15
	S	-	1/8	1/8	1/4	1/4	3/8	3/8
	L5	50	60	60	80	80	120	130
	L6	68	85	90	105	105	165	180
	L7	120	120	165	180	180	280	300
	L8	140	150	195	220	220	330	360
	H1	75	90	120	130	160	185	230
	D5	7	10	12	12	12	15	17
