PB-B1 type hollow shaft coupling, flange supported magnetic powder brake
Category：
Consult Now
Product Details
Specifications
| Model |
Rated Torque kgf/m(N-m) |
Magnetic Coil (75℃) |
Moment of Inertia (Kg/㎡) |
Weight (kg) |
Maximum Speed (r/min) |
Magnetic Powder Weight (g) |
||
| Current (A) |
Power (W) |
Time Constant (S) |
||||||
| PB-0.6B1 |
6 |
1.0 |
26 |
0.10 |
1.55x10 -3 |
2.4 |
1800 |
15 |
| PB-1.2B1 |
12 |
1.2 |
28.8 |
0.13 |
5.5x10 -3 |
5 |
1800 |
25 |
| PB-2.5B1 |
25 |
1.8 |
44.3 |
0.15 |
9.4x10 -2 |
7.4 |
1800 |
33 |
| PB-5B1 |
50 |
2.4 |
57.6 |
0.17 |
2.3x10 -2 |
11 |
1800 |
60 |
| PB-10B1 |
100 |
2.67 |
64 |
0.30 |
6.6x10 -2 |
21.5 |
1800 |
110 |
| PB-20B1 |
200 |
3.4 |
82 |
0.60 |
2.0x10 -1 |
39.5 |
1000 |
230 |

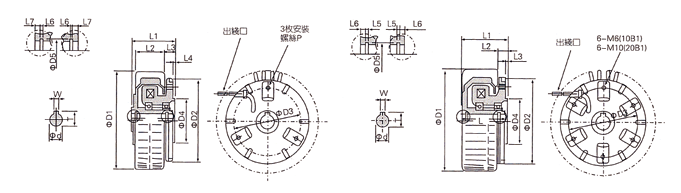

Dimensions
| Model |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
D1 |
D2 |
D3 |
D4 (g7) |
D5 |
P |
D (H7) |
W |
T |
| PB-0.6B1 |
68 |
53 |
15 |
2 |
64 |
1.1 |
3 |
116 |
116 |
80 |
70 |
12.5 |
M5 |
12 |
4 |
13.5 |
| PB-1.2B1 |
88 |
58 |
26 |
2 |
86 |
1.1 |
4 |
160 |
144 |
100 |
74 |
19 |
M6 |
18 |
5 |
20 |
| PB-2.5B1 |
100 |
66 |
28 |
5 |
92 |
1.1 |
4 |
180 |
170 |
140 |
100 |
21 |
M10 |
20 |
5 |
22 |
| PB-5B1 |
106 |
74 |
27 |
5 |
101 |
1.3 |
5 |
220 |
195 |
150 |
110 |
31.4 |
M10 |
30 |
7 |
33 |
| PB-10B1 |
140 |
29 |
5 |
130 |
1.65 |
5 |
275 |
250 |
150 |
110 |
37 |
35 |
10 |
38.5 |
||
| PB-20B1 |
160 |
42 |
6 |
152 |
335 |
320 |
240 |
160 |
45 |
12 |
49 |
